Ubuntu 16.04 Server 安装 TL-WN821N 无线网卡驱动

最近搞个了 Mini 服务器, 安装了 Ubuntu, 手上有一块 TL-WN821N 无线网卡可以使用, 但官方提供的驱动不支持当前安装的 Ubuntu 版本, 所以产生了自编译驱动的想法.

系统版本: Ubuntu 16.04.1 LTS Server amd64
内核版本: 4.4.0-31-generic
gcc 版本: 5.4.0 20160609
make 版本: GNU Make 4.1

硬件版本: V5
英文官网驱动及源码下载: [点击](http://www.tp-link.com/en/download/TL-WN821N.html#Driver)

![TL-WN821N固件源码下载界面.PNG](https://www.flysfeq.site/usr/uploads/2019/07/1587464714.png)

![](http://oxabal6o8.bkt.clouddn.com/2016080601/TL-WN821N%E5%9B%BA%E4%BB%B6%E6%BA%90%E7%A0%81%E4%B8%8B%E8%BD%BD%E7%95%8C%E9%9D%A2.PNG)

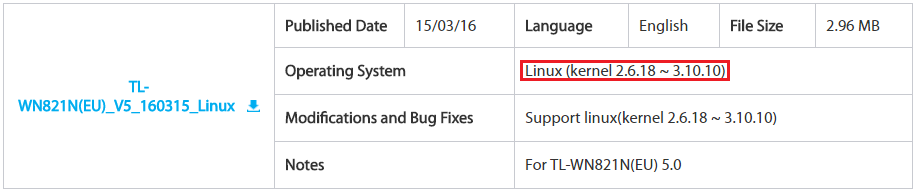

> 上图红框中标注的是压缩包中源码基于内核版本编写的, 如使用不同内核将产生一些错误.

## 编译并安装驱动
**注意:**
> 如果采用 UEFI Secure Boot 启动, 且内核有并开启了模块签名检测, 就要对 8192eu.ko 签名, 详情看 [参考1].

![](http://oxabal6o8.bkt.clouddn.com/2016080601/TL-WN821N%E5%9B%BA%E4%BB%B6%E6%BA%90%E7%A0%81%E6%96%87%E4%BB%B6%E5%88%97%E8%A1%A8.PNG)

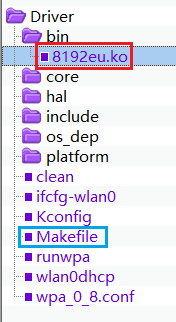

> 目录结构

清理目录
`$sudo make clean`
生成模块
`$sudo make`
生成密钥
`$openssl req -new -x509 -newkey rsa:2048 -keyout 8192eu.priv -outform DER -out 8192eu.der -nodes -days 36500 -subj "/CN=Descriptive name/"`
安装证书
`$sudo mokutil --import 8192eu.der`
重启系统: 开机导入证书, 详情看 [参考2].
签名模块:
`$sudo /usr/src/linux-headers-$(uname -r)/scripts/sign-file sha256 ./8192eu.priv ./8192eu.der ./8192eu.ko`
安装模块:
`$make install`
载入模块:
`$modprobe 8192eu` 未签名又开启检测则报错:
> modprobe: ERROR: could not insert '8192eu': Required key not available

完成!

![TL-WN821N固件源码文件列表.PNG](https://www.flysfeq.site/usr/uploads/2019/07/1862652151.png)

## 编译中的错误处理

/mnt/usb/Driver/include/rtw_debug.h:242:7: note: in expansion of macro ‘_seqdump’
    if(_seqdump(sel, fmt, ##arg)) /*rtw_warn_on(1)*/; \
    ^
    /mnt/usb/Driver/core/rtw_cmd.c:3308:3: note: in expansion of macro ‘DBG_871X_SEL_NL’
    DBG_871X_SEL_NL(sel, "retry_cnt:%u\n", info->retry_cnt);
    ^
    /mnt/usb/Driver/include/rtw_debug.h:187:19: error: void value not ignored as it ought to be
    #define _seqdump seq_printf
    ^
    /mnt/usb/Driver/include/rtw_debug.h:242:7: note: in expansion of macro ‘_seqdump’
    if(_seqdump(sel, fmt, ##arg)) /*rtw_warn_on(1)*/; \
    ^
    /mnt/usb/Driver/core/rtw_cmd.c:3311:3: note: in expansion of macro ‘DBG_871X_SEL_NL’
    DBG_871X_SEL_NL(sel, "rssi:%u\n", info->rssi);
    ^
    /mnt/usb/Driver/include/rtw_debug.h:187:19: error: void value not ignored as it ought to be
    #define _seqdump seq_printf
    ^
    /mnt/usb/Driver/include/rtw_debug.h:242:7: note: in expansion of macro ‘_seqdump’
    if(_seqdump(sel, fmt, ##arg)) /*rtw_warn_on(1)*/; \
    ^
    /mnt/usb/Driver/core/rtw_cmd.c:3314:3: note: in expansion of macro ‘DBG_871X_SEL_NL’
    DBG_871X_SEL_NL(sel, "byte5:%s%s\n"
    ^
    scripts/Makefile.build:258: recipe for target '/mnt/usb/Driver/core/rtw_cmd.o' failed
    make[2]: *** [/mnt/usb/Driver/core/rtw_cmd.o] Error 1
    Makefile:1403: recipe for target '_module_/mnt/usb/Driver' failed
    make[1]: *** [_module_/mnt/usb/Driver] Error 2
    make[1]: Leaving directory '/usr/src/linux-headers-4.4.0-31-generic'
    Makefile:1696: recipe for target 'modules' failed
    make: *** [modules] Error 2
    sxsfeq@ubuntu-J1900:/mnt/usb/Driver$ clear
    sxsfeq@ubuntu-J1900:/mnt/usb/Driver$ make
    "******************************************"
    "NO SKRC,we will use default KSRC"
    "******************************************"
    make ARCH=x86_64 CROSS_COMPILE= -C /lib/modules/4.4.0-31-generic/build M=/mnt/usb/Driver modules
    make[1]: Entering directory '/usr/src/linux-headers-4.4.0-31-generic'
    "******************************************"
    "NO SKRC,we will use default KSRC"
    "******************************************"
    CC [M] /mnt/usb/Driver/core/rtw_cmd.o
    In file included from /mnt/usb/Driver/include/drv_types.h:95:0,
    from /mnt/usb/Driver/core/rtw_cmd.c:22:
    /mnt/usb/Driver/include/hal_com.h:413:13: error: ‘file_path’ redeclared as different kind of symbol
    extern char file_path[PATH_LENGTH_MAX];
    ^
    In file included from include/linux/compat.h:15:0,
    from include/linux/ethtool.h:15,
    from include/linux/netdevice.h:42,
    from /mnt/usb/Driver/include/osdep_service_linux.h:35,
    from /mnt/usb/Driver/include/osdep_service.h:41,
    from /mnt/usb/Driver/include/drv_types.h:32,
    from /mnt/usb/Driver/core/rtw_cmd.c:22:
    include/linux/fs.h:2572:14: note: previous declaration of ‘file_path’ was here
    extern char *file_path(struct file *, char *, int);
    ^
    In file included from /mnt/usb/Driver/include/drv_types.h:65:0,
    from /mnt/usb/Driver/core/rtw_cmd.c:22:
    /mnt/usb/Driver/core/rtw_cmd.c: In function ‘btinfo_evt_dump’:
    /mnt/usb/Driver/include/rtw_debug.h:187:19: error: void value not ignored as it ought to be
    #define _seqdump seq_printf
    ^
    /mnt/usb/Driver/include/rtw_debug.h:242:7: note: in expansion of macro ‘_seqdump’
    if(_seqdump(sel, fmt, ##arg)) /*rtw_warn_on(1)*/; \
    ^
    /mnt/usb/Driver/core/rtw_cmd.c:3293:2: note: in expansion of macro ‘DBG_871X_SEL_NL’
    DBG_871X_SEL_NL(sel, "cid:0x%02x, len:%u\n", info->cid, info->len);
    ^
    /mnt/usb/Driver/include/rtw_debug.h:187:19: error: void value not ignored as it ought to be
    #define _seqdump seq_printf
    ^
    /mnt/usb/Driver/include/rtw_debug.h:242:7: note: in expansion of macro ‘_seqdump’
    if(_seqdump(sel, fmt, ##arg)) /*rtw_warn_on(1)*/; \
    ^
    /mnt/usb/Driver/core/rtw_cmd.c:3296:3: note: in expansion of macro ‘DBG_871X_SEL_NL’
    DBG_871X_SEL_NL(sel, "byte2:%s%s%s%s%s%s%s%s\n"
    ^
    /mnt/usb/Driver/include/rtw_debug.h:187:19: error: void value not ignored as it ought to be
    #define _seqdump seq_printf
    ^
    /mnt/usb/Driver/include/rtw_debug.h:242:7: note: in expansion of macro ‘_seqdump’
    if(_seqdump(sel, fmt, ##arg)) /*rtw_warn_on(1)*/; \
    ^
    /mnt/usb/Driver/core/rtw_cmd.c:3308:3: note: in expansion of macro ‘DBG_871X_SEL_NL’
    DBG_871X_SEL_NL(sel, "retry_cnt:%u\n", info->retry_cnt);
    ^
    /mnt/usb/Driver/include/rtw_debug.h:187:19: error: void value not ignored as it ought to be
    #define _seqdump seq_printf
    ^
    /mnt/usb/Driver/include/rtw_debug.h:242:7: note: in expansion of macro ‘_seqdump’
    if(_seqdump(sel, fmt, ##arg)) /*rtw_warn_on(1)*/; \
    ^
    /mnt/usb/Driver/core/rtw_cmd.c:3311:3: note: in expansion of macro ‘DBG_871X_SEL_NL’
    DBG_871X_SEL_NL(sel, "rssi:%u\n", info->rssi);
    ^
    /mnt/usb/Driver/include/rtw_debug.h:187:19: error: void value not ignored as it ought to be
    #define _seqdump seq_printf
    ^
    /mnt/usb/Driver/include/rtw_debug.h:242:7: note: in expansion of macro ‘_seqdump’
    if(_seqdump(sel, fmt, ##arg)) /*rtw_warn_on(1)*/; \
    ^
    /mnt/usb/Driver/core/rtw_cmd.c:3314:3: note: in expansion of macro ‘DBG_871X_SEL_NL’
    DBG_871X_SEL_NL(sel, "byte5:%s%s\n"
    ^
    scripts/Makefile.build:258: recipe for target '/mnt/usb/Driver/core/rtw_cmd.o' failed
    make[2]: *** [/mnt/usb/Driver/core/rtw_cmd.o] Error 1
    Makefile:1403: recipe for target '_module_/mnt/usb/Driver' failed
    make[1]: *** [_module_/mnt/usb/Driver] Error 2
    make[1]: Leaving directory '/usr/src/linux-headers-4.4.0-31-generic'
    Makefile:1696: recipe for target 'modules' failed
    make: *** [modules] Error 2
    以上错误的解决方法:
    seq_printf ->不在具有返回值所以调用以获取返回值来判断的地方错了, 例: "if(seq_printf(...));" 相当于 "if (void);", 修改源码中 if 的判断.
    DBG_871X_SEL_NL -> 都是由于 seq_printf 引发的错误.
    "Driver/include/hal_com.h->file_path" 与 "include/linux/fs.h->file_path" -> 重名了, 重名名 file_path_own 并重命名调用它的所有源码.
    macro "__DATE__" might prevent reproducible builds [-Werror=date-time] -> 在 gcc 4.9 后出现, 修改为 "null" 带双引号去掉对宏的引用.
    /Driver/os_dep/linux/ioctl_cfg80211.c:919:4: error: too few arguments to function ‘cfg80211_disconnected’-> 源码与内核源码不匹配,配参数少了, 在第1个参数后加 "NULL, ".
    /Driver/os_dep/linux/rtw_cfgvendor.c:143:2: error: too few arguments to function ‘cfg80211_vendor_event_alloc' -> 内核与内核源码不匹配, 参数少了, 在第1个参数后加 "NULL, "

## 开机自动连接 WiFi

编辑 `sudo nano /etc/network/interfaces`

# TL-WN821N
    auto wlx3c46d8e08c1b #ifconfig 中的名字
    allow-hotplug wlan0
    iface wlx3c46d8e08c1b inet static
    #address 192.168.3.123
    address 192.168.2.123
    netmask 255.255.255.0
    #geteway 192.168.3.1
    geteway 192.168.2.1
    pre-up wpa_supplicant -B -i wlx3c46d8e08c1b -c /etc/wpa_supplicant/wpa_supplicant.conf

### 参考
 1 [Why do I get “Required key not available” when install 3rd party kernel modules or after a kernel upgrade?](http://askubuntu.com/questions/762254/why-do-i-get-required-key-not-available-when-install-3rd-party-kernel-modules)
 2 [Systemtap UEFI Secure Boot Support](https://sourceware.org/systemtap/wiki/SecureBoot)
 3 [linux内核模块签名 - Always look out for number one.](http://blog.csdn.net/liumangxiong/article/details/18730111)
 4 [android 安装内核module，提示Required key not available](http://blog.csdn.net/lewif/article/details/49305385)
 5 [uefi - Why do I get "Required key not available" when install 3rd party kernel modules or after a kernel upgrade? - Ask Ubuntu](http://askubuntu.com/questions/762254/why-do-i-get-required-key-not-available-when-install-3rd-party-kernel-modules)
 5 [SecureBoot - 维基的SystemTap](https://sourceware.org/systemtap/wiki/SecureBoot)
 7 [UEFI/SecureBoot](https://wiki.ubuntu.com/UEFI/SecureBoot)
